Somfy 506S2 Sonesse 50 Star Head Motor 4-Wire #1001814
Somfy 506S2 Sonesse 50 Star Head Motor 4-Wire #1001814
Sale price: $249.00
Quantity:

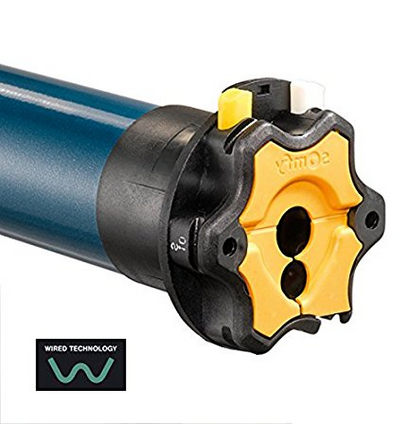

 Somfy Sonesse 506S2 Star Head Motor (Standard 4-Wire Motor)

  • Rapid Limit Adjustment (White & Yellow pushbuttons at Motor Head)
  • 110V AC Operation with 3Ft Pigtail
  • Standard Dry Contact Motor 4-Wire (2-Hot for direction 1-Neutral 1-Ground)
  • Current Draw: 0.95Amp @ 120VAC
  • Ultra-Quiet operation at 44dBa
  • Roller / Screen Shades, Roman, Balloon, Austrian, London and Woven Wood Shades. Click here for Assembled Lift Kits
  • Lift Capacity: 6NM / 2" Tube = 52lbs
  • Speed: 32 RPM
  • Weight: 5.6Lbs
  • Dimensions: 31.00" Long x 2.25" Diameter at motor head
  • Somfy Part # 1001814  old Part # 1030061

 Motor Programming/Installation Instructions .3Mb
 Wiring Diagram


Availability: Not a Stocked Item
Ships: 2-3 Days from SOmfy New Jersey
