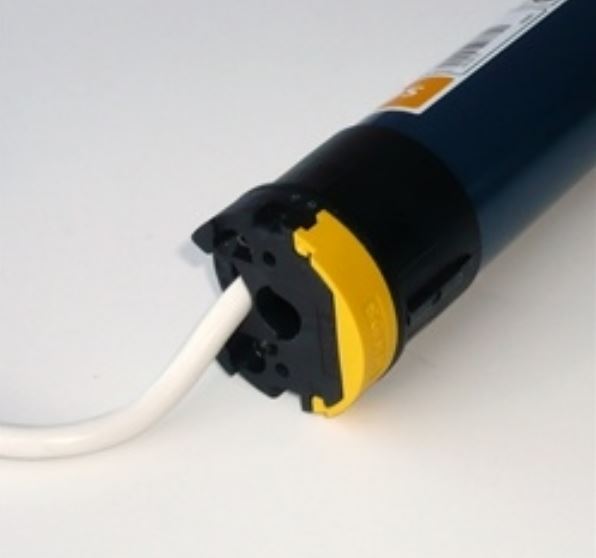

Somfy 510S2 RH Sonesse 50 Round Head Motor 4-Wire Motor

• (RA) Rapid Limit Adjustment (White & Yellow pushbutton at Motor Head)

• 110V AC Operation with 3Ft Pigtail
• Standard Dry Contact Motor 4-Wire (2-Hot for direction 1-Neutral 1-Ground)
• Current Draw: 0.95Amp @ 120VAC
• Ultra-Quiet operation at 44dBa
• Roller / Screen Shades, Roman, Balloon, Austrian, London and Woven Wood Shades. Click here for Assembled Lift Kits
• Lift Capacity: 10Nm / 2" Tube = 53lbs
• Speed: 32 RPM
• Weight: 5.6Lbs
• Dimensions: 31.00" Long x 2.25" Diameter at motor head
• Somfy Part# 1001810 Old Cat. # 1030061

 Motor Programming/Installation Instructions .3Mb
 Wiring Diagram


Availability:  Not a Stocked Item
Ships:  1-2  Business Days directly from Manufacturer
