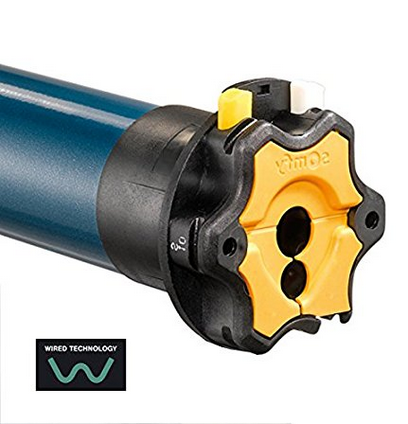

Somfy Sonesse 506S2 Star Head Motor (Standard 4-Wire Motor)

• Rapid Limit Adjustment (White & Yellow pushbuttons at Motor Head)

• 110V AC Operation with 9Ft Pigtail
• Standard Dry Contact Motor 4-Wire (2-Hot for direction 1-Neutral 1-Ground)

• Current Draw: 1.67Amp @ 120VAC
• Quiet operation at
• Roller / Screen Shades, Roman, Balloon, Austrian, London and Woven Wood Shades. Click here for Assembled Lift Kits
• Lift Capacity: 10Nm
• Fits in a 2" (47mm) smooth wall tube or larger
• Speed: 32 RPM
• Weight: 5.6Lbs
• Dimensions: 24.33" Long x 2.25" Diameter at motor head
• Somfy Part # 1001813  old Part # 1030061

 Motor Programming/Installation Instructions .3Mb
 Wiring Diagram

Availability: Not a Stocked Item
Ships: 2-3 Workign Days from Somfy New Jersey
