Somfy CT32 WireFree (RTS) Lift Motor

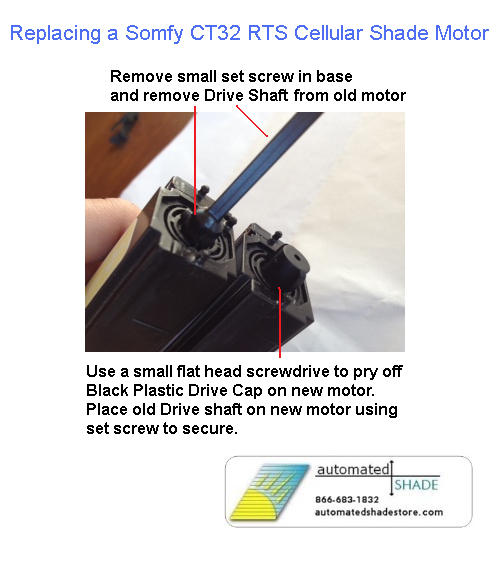

11-10-14 This motor is no longer available. Click
< HERE > to purchase a direct replacement Motor. Click < HERE > to purchase a CT32 reset tool.
- 12 Volt DC Operation @1.2 amp
- WireFree - No wiring neccessary. Powered with batteries.
- Compatible with all Somfy (RTS) Controls
- Capable of lifting Honeycomb-Duette, Pleated and Roman type shades up to 15 lbs.
- Fits in many manufacturer headrails with headrail and shaft adapters listed below
- Automation Interfaces available for 3rd party integration
- 12 Volt Plug in transformer recommended for shades greater than 60"W x 60"H
- Dimensions: Length 4.19"(113.95mm), Width: 1.25"(31.75mm), Height: 1.23"(31.24mm)
- Somfy CAT # 1000494 Replaces old Somfy Cat# 2330147 CT-32-RT-12
Quick Programming Guide
Complete Programming Guide
Hardwiring for a Single or Double Motor
Somfy CT32 RTS Motor/Product Brochure
Somfy WireFree Databook 2014 3Mb
For your Convenience please review the following chart below for help in purchasing the correct Headrail & Shaft adapter for the headrail type of your shade.
Shade Size Limitations 5.2Mb
* When ordering be sure to check "Additional Options" for components that may be needed to motorize if not already purchased. Shaft adapters, power source and controller are required to have a fully operable Lift system.
Availabilty: Discontinued with NO Stock
Ships: Never
