10-Motor 12V DC x 10 Amp Power Panel
10-Motor 12V DC x 10 Amp Power Panel
10-Motor Fused Power Distribution Board
Sale price: $566.00

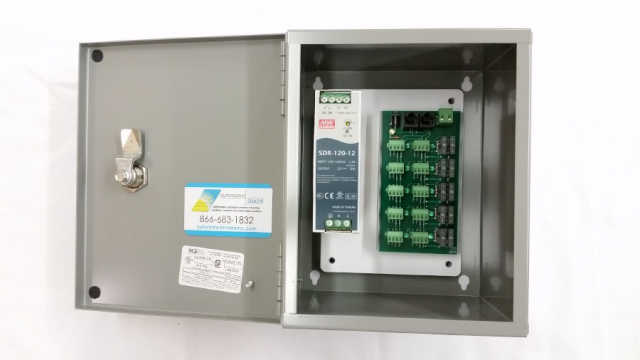

10 Motor 12V DC x 10 Amp Fused Power Distribution Panel

Monster Power Safe, Reliable Power for projects that require more than plug-in transformers or battery wands to power your window treatment motors.

Custom Power Panel Features Include:

  • Fully wired and ready to install right out of the box. Includes a 6Ft power lead that plugs directly into a wall outlet or surge strip.
  • (1)-UL-Listed 8"W x 10"L x 6.25"D NEMA Type 1 Enclosure with Continuous Hinge, Black Quarter Turn Latch, .063" Carbon Steel-Gray Powder Coated inside and out, 4-Mounting holes, One 6 Ft 18AWG Grounded Power Cord. One shade power wire knockout and cable clamp is provided for every three shades. Wire Knockout location can be specified at Top or Bottom of Panel.
  • (1)-UL-Listed Meanwell SDR-120-12 DIN Rail transformer. Transformer delivers 10 Amps of power with peak load capability of 180 Watts (15 Amps) for 3 seconds. UL508 Industrial Control and complies with GL Marine and SEMI F47. Input Voltage 90~264vac @ 1.4 Amps. Operating Temperature Range: -25~+70°C. High Efficiency 91% with Built-In PFC power supply with Standard Protections: Short Circuit, Overload, Over Voltage and Over Temperature.
  • (1)-10 Motor Power Distribution Boards with removable 4-Conductor Wire Screw Terminal connectors protected with 2-Amp ATC Blade Type automotive fuse. Each board is mounted in plastic Snap Track
  • Approximate Weight 20 Lbs
  • 3 Year Full Warranty on all parts

Always be sure to plug your Power Panel into a quality surge strip to provide additional protection from Power Surges and Lightning Stikes that will damage and burn out DC motors.

Availability: In Stock - Custom Made per order
Ships: 3-5 days
